Code: vms-600-8r

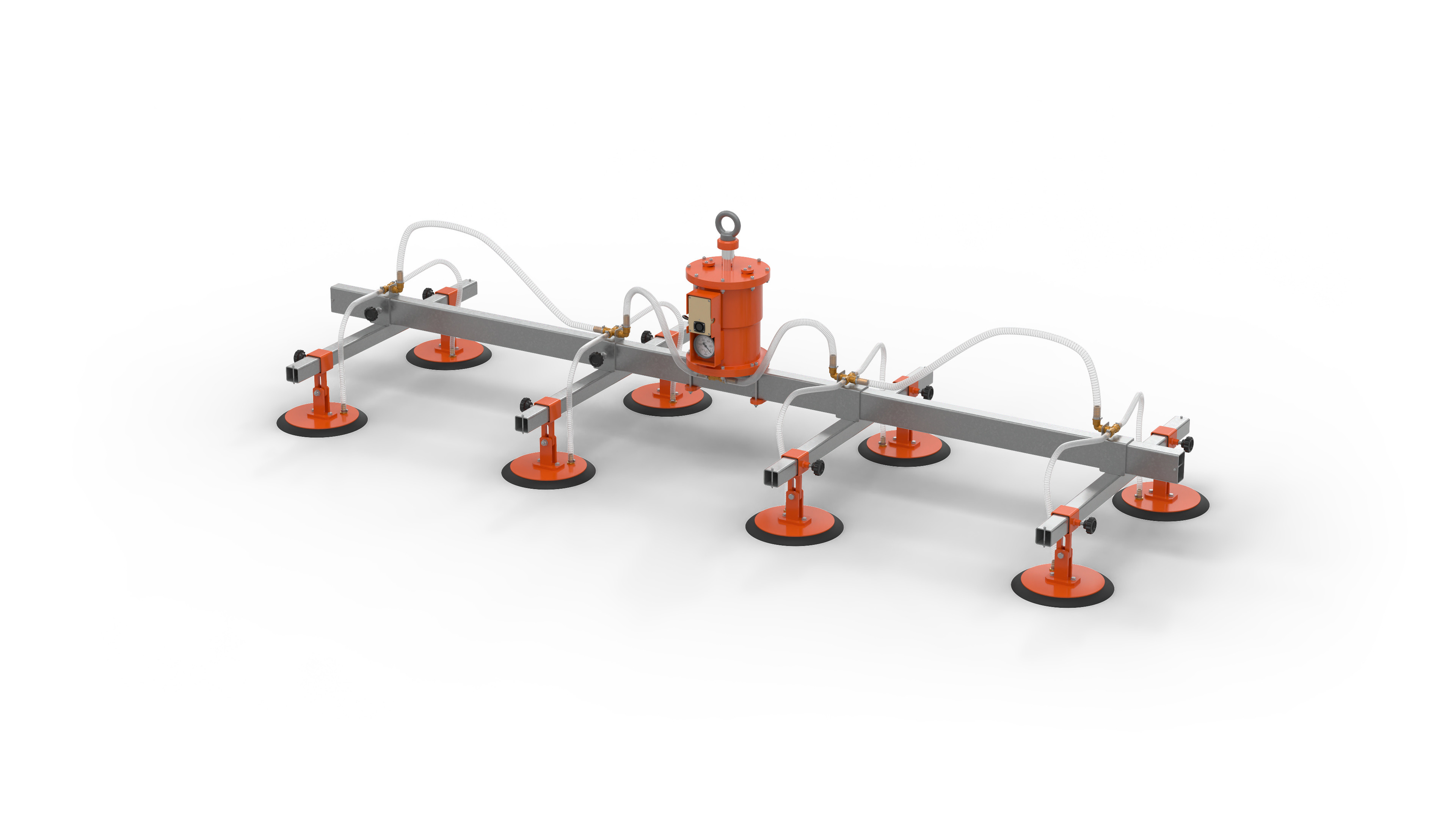

VMS 600-8R
| Parameter | Value |
|---|---|
| Type | VMS 600-8R VMS 600-8R |
| WLL – Working load limit | 600 kg 600 kg |
| Maximum dimension (reference sheet) | 4000 × 2000 mm 4000 × 2000 mm |
| Minimum dimension | 500 × 500 mm 500 × 500 mm |
| Minimum thickness (for steel sheet) | 1 mm 1 mm |
| Weight | 130 kg 130 kg |
| Number of suction cups / size | 8 / Ø 230 mm 8 / Ø 230 mm |
| Minimum load capacity | 5 kg 5 kg |
| Dimensions | Amax 880 mm |
| Dimensions | Ø B 50 mm |
| Dimensions | Ø C 230 mm |
| Dimensions | D 3000 mm |
| Dimensions | E 1100 or 1000 mm |
| Can be equipped with shut-off valves | Yes Yes |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
