Code: vms-600-4r

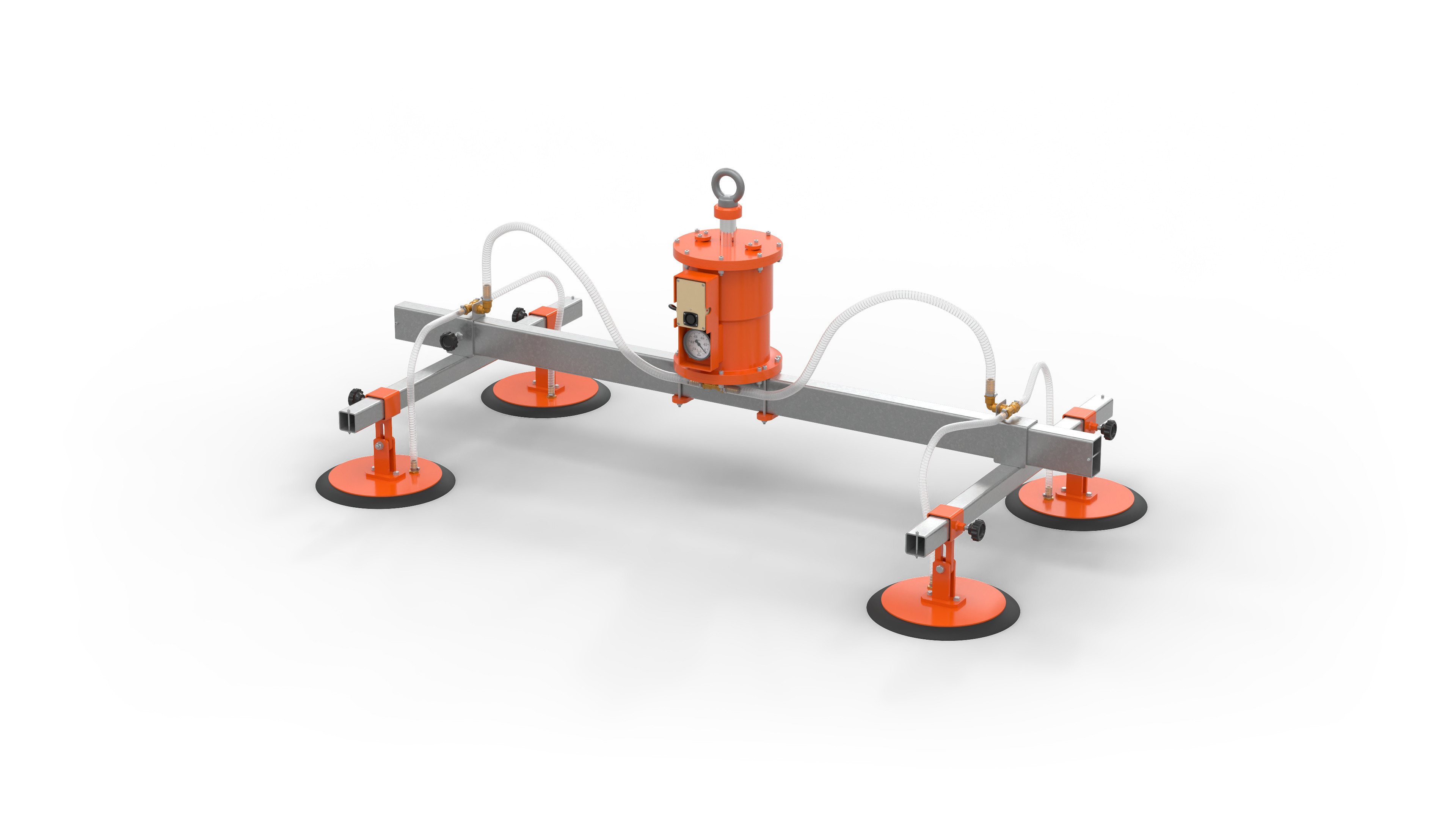

VMS 600-4R
| Parameter | Value |
|---|---|
| Type | VMS 600-4R VMS 600-4R |
| WLL – Working load limit | 600 kg 600 kg |
| Maximum dimension (reference sheet) | 3000 × 1500 mm 3000 × 1500 mm |
| Minimum dimension | 800 × 750 mm 800 × 750 mm |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 106 kg 106 kg |
| Number of suction cups / size | 4 / Ø 340 mm 4 / Ø 340 mm |
| Minimum load capacity | 5 kg 5 kg |
| Dimensions | Amax 880 mm |
| Dimensions | Ø B 50 mm |
| Dimensions | Ø C 340 mm |
| Dimensions | D 1910 or 2200 mm |
| Dimensions | E 1100 or 1000 mm |
| Can be equipped with shut-off valves | No No |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
