Code: vms-600-3

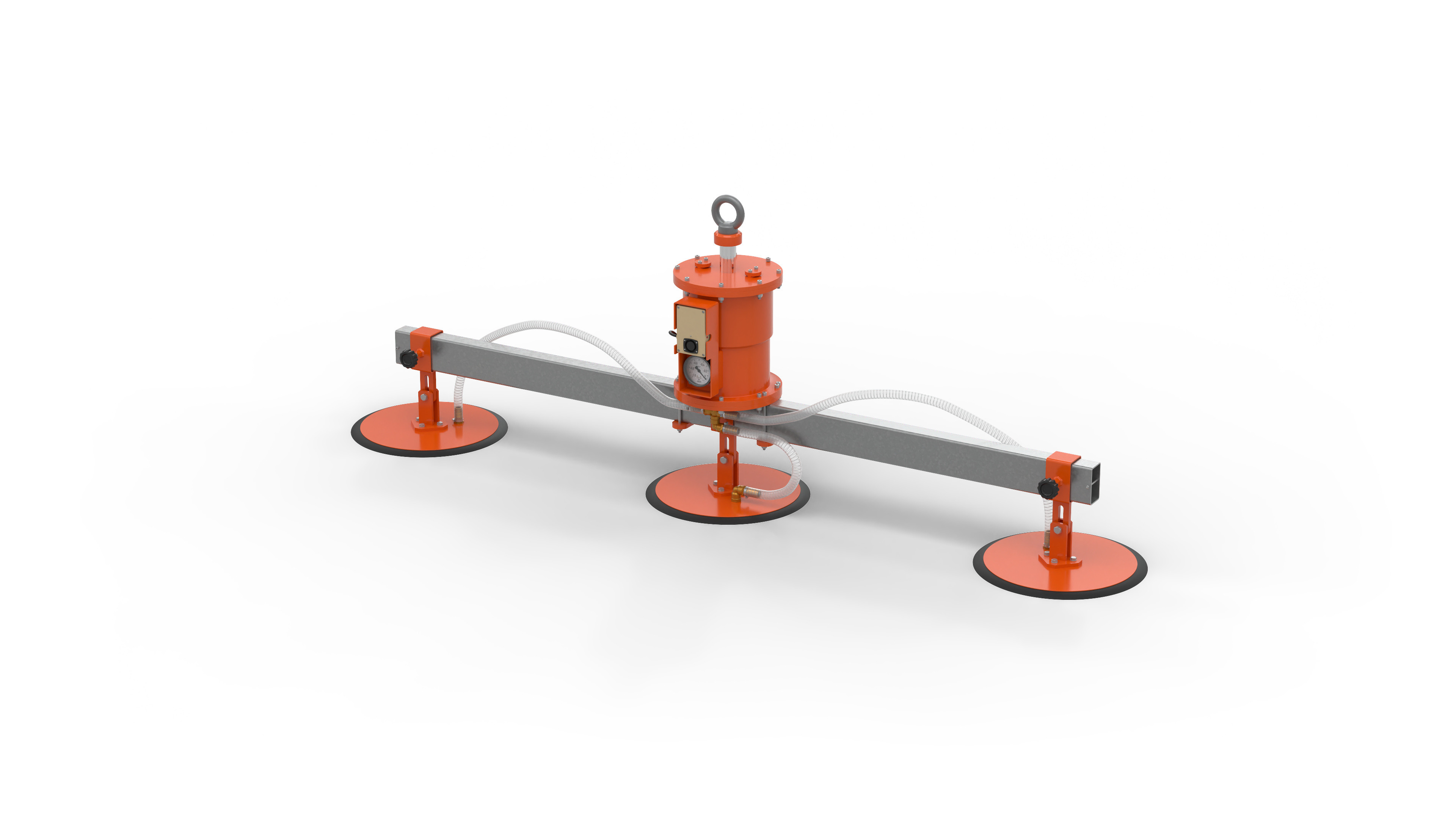

VMS 600-3
| Parameter | Value |
|---|---|
| Type | VMS 600-3 VMS 600-3 |
| WLL – Working load limit | 600 kg 600 kg |
| Maximum dimension (reference sheet) | 3000 × 1500 mm 3000 × 1500 mm |
| Minimum dimension | Ø 450 mm Ø 450 mm |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 82 kg 82 kg |
| Number of suction cups / size | 3 / Ø 400 mm 3 / Ø 400 mm |
| Minimum load capacity | 5 kg 5 kg |
| Dimensions | Amax 810 mm |
| Dimensions | Ø B 50 mm |
| Dimensions | Ø C 400 mm |
| Dimensions | D 1910 or 2200 mm |
| Can be equipped with shut-off valves | Yes Yes |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
