Code: vms-400-1

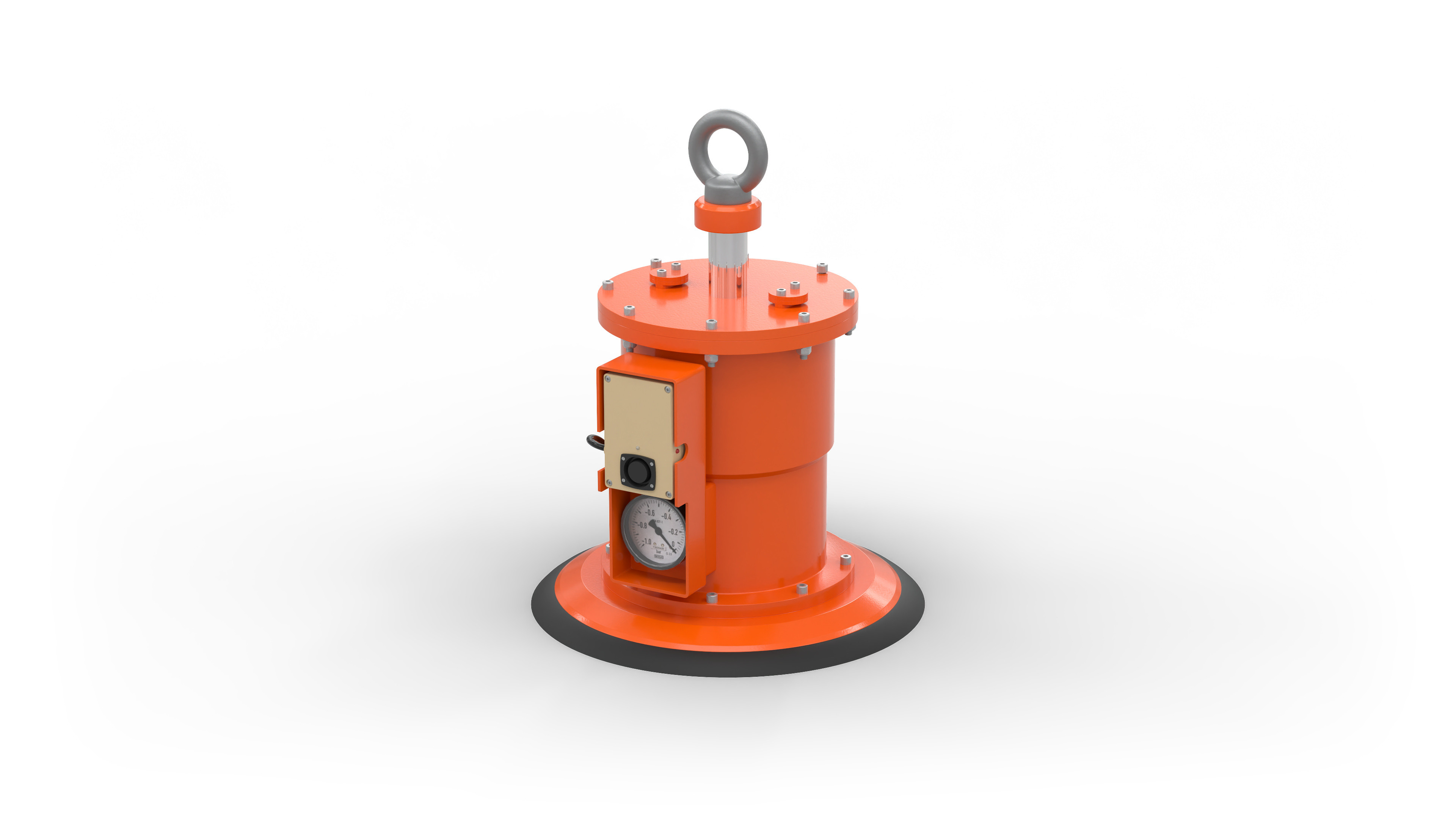

VMS 400-1
| Parameter | Value |
|---|---|
| Type | VMS 400-1 VMS 400-1 |
| WLL – Working load limit | 400 kg 400 kg |
| Maximum dimension (reference sheet) | 2000 × 1000 mm 2000 × 1000 mm |
| Minimum dimension | Ø 500 mm Ø 500 mm |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 46 kg 46 kg |
| Number of suction cups / size | 1 / Ø 400 mm 1 / Ø 400 mm |
| Minimum load capacity | 5 kg 5 kg |
| Dimensions | Amax 580 mm |
| Dimensions | Ø B 50 mm |
| Dimensions | Ø C 400 mm |
| Can be equipped with shut-off valves | No No |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
