Code: vms-2400-2

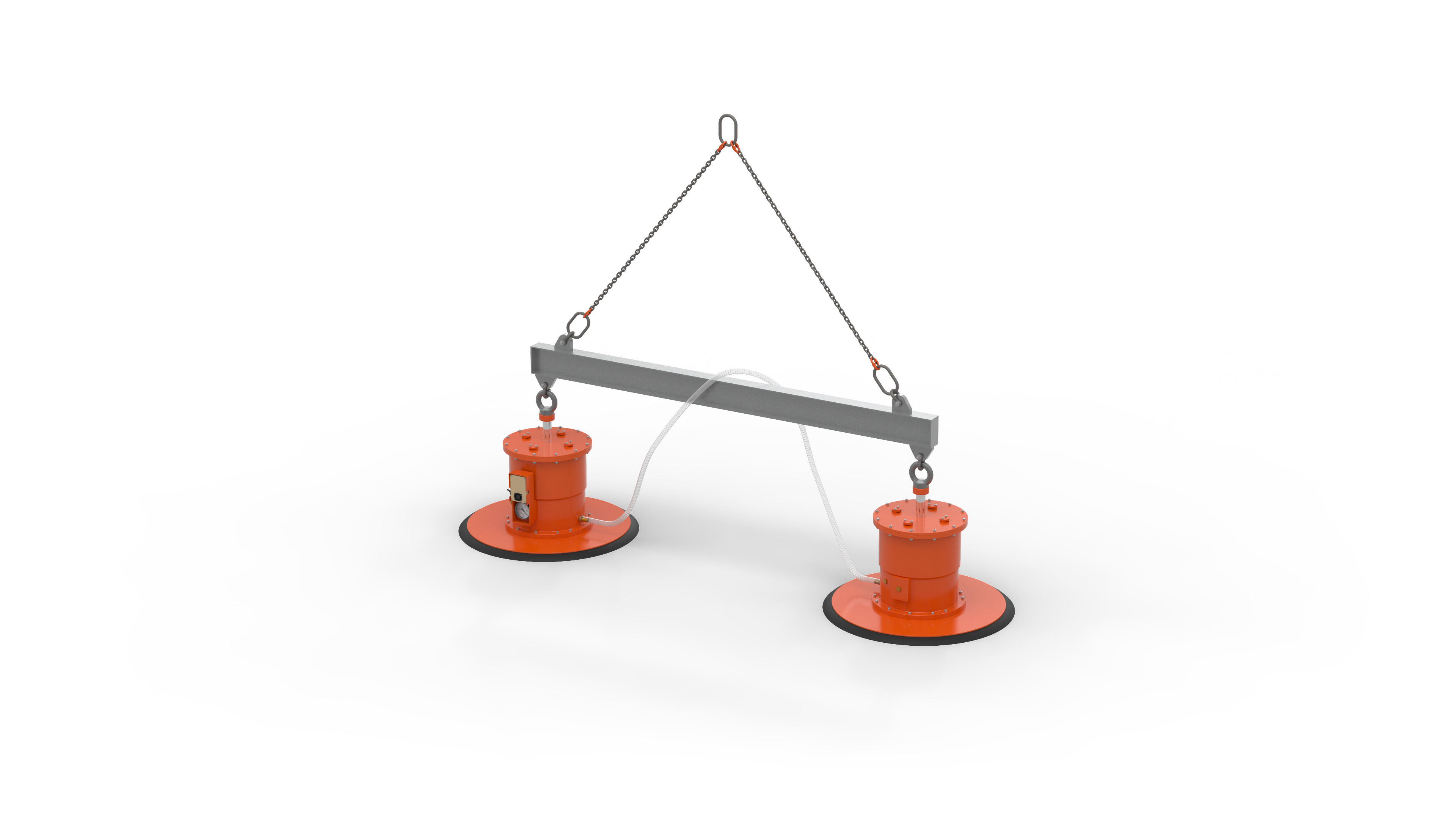

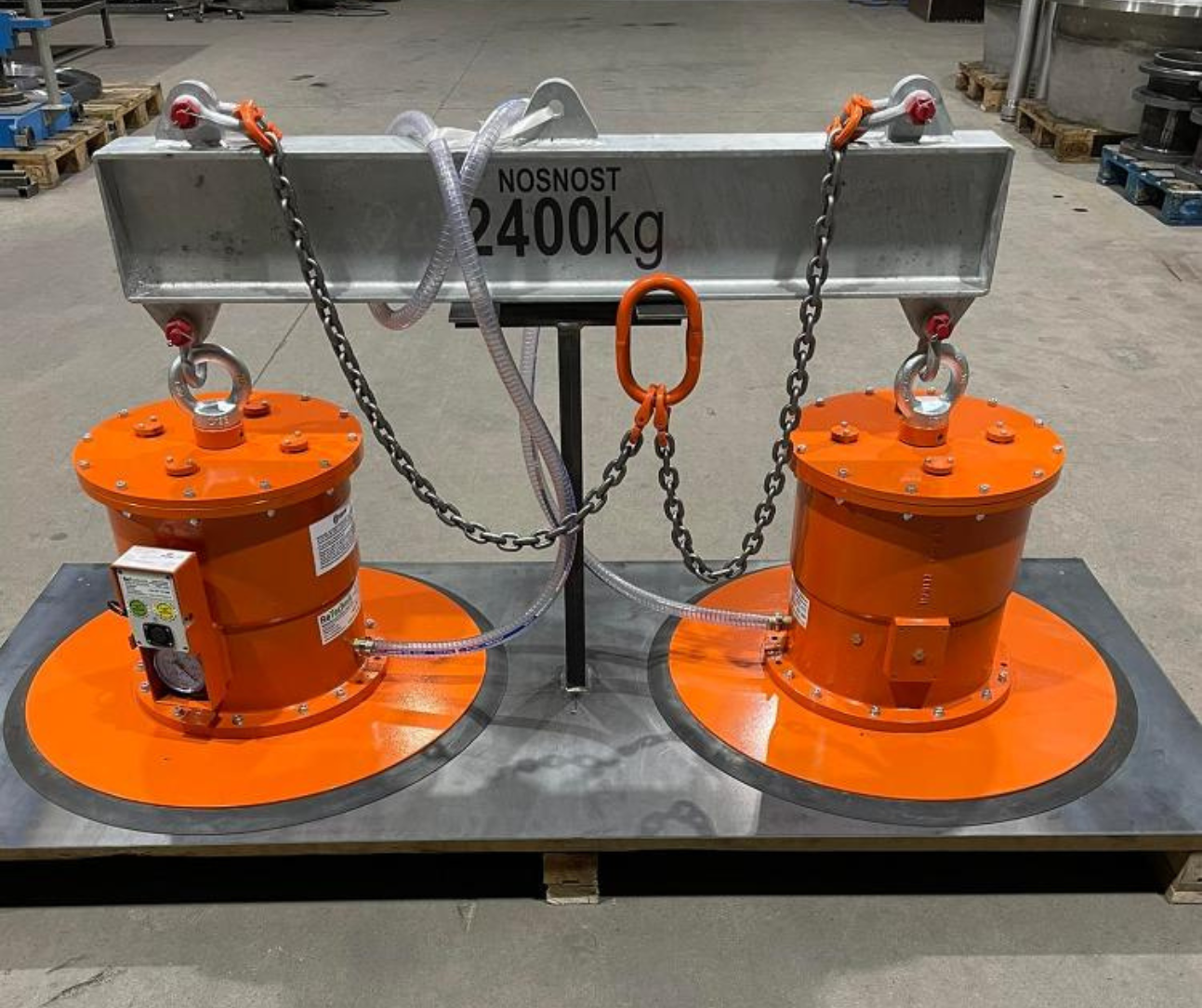

VMS 2400-2
| Parameter | Value |
|---|---|
| Type | VMS 2400-2 VMS 2400-2 |
| WLL – Working load limit | 2400 kg 2400 kg |
| Maximum dimension (reference sheet) | 3000 × 1500 mm 3000 × 1500 mm |
| Minimum dimension | 2000 × 1000 mm 2000 × 1000 mm |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 280 kg 280 kg |
| Number of suction cups / size | 2 / Ø 770 mm 2 / Ø 770 mm |
| Minimum load capacity | 10 kg 10 kg |
| Dimensions | Amax 2000 mm |
| Dimensions | Ø C 770 mm |
| Dimensions | B 1000 - 3000 mm |
| Can be equipped with shut-off valves | No No |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
