Code: vms-2400-10r

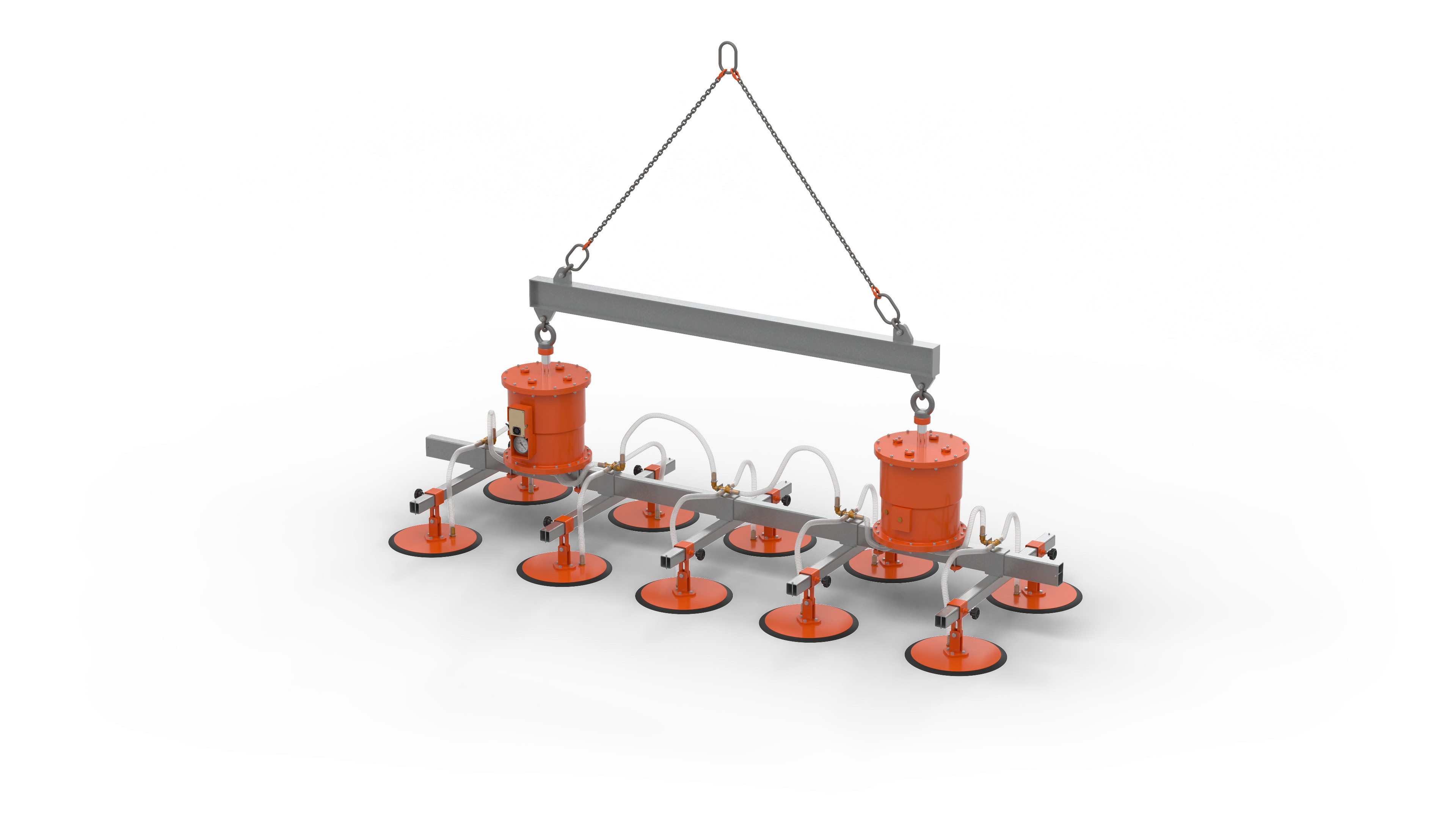

VMS 2400-10R
| Parameter | Value |
|---|---|
| Type | VMS 2400-10R VMS 2400-10R |
| WLL – Working load limit | 2400 kg 2400 kg |
| Maximum dimension (reference sheet) | 9000 × 2000 mm 9000 × 2000 mm |
| Minimum dimension | 1250 × 850 mm 1250 × 850 mm |
| Minimum thickness (for steel sheet) | 1 mm 1 mm |
| Weight | 480 kg 480 kg |
| Number of suction cups / size | 10 / Ø 400 mm 10 / Ø 400 mm |
| Minimum load capacity | 20 kg 20 kg |
| Dimensions | Amax 2370 mm |
| Dimensions | Ø C 400 mm |
| Dimensions | D 3000 - 6000 mm |
| Dimensions | E 1100 or 1000 mm |
| Can be equipped with shut-off valves | Yes Yes |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
