Code: vms-150-2

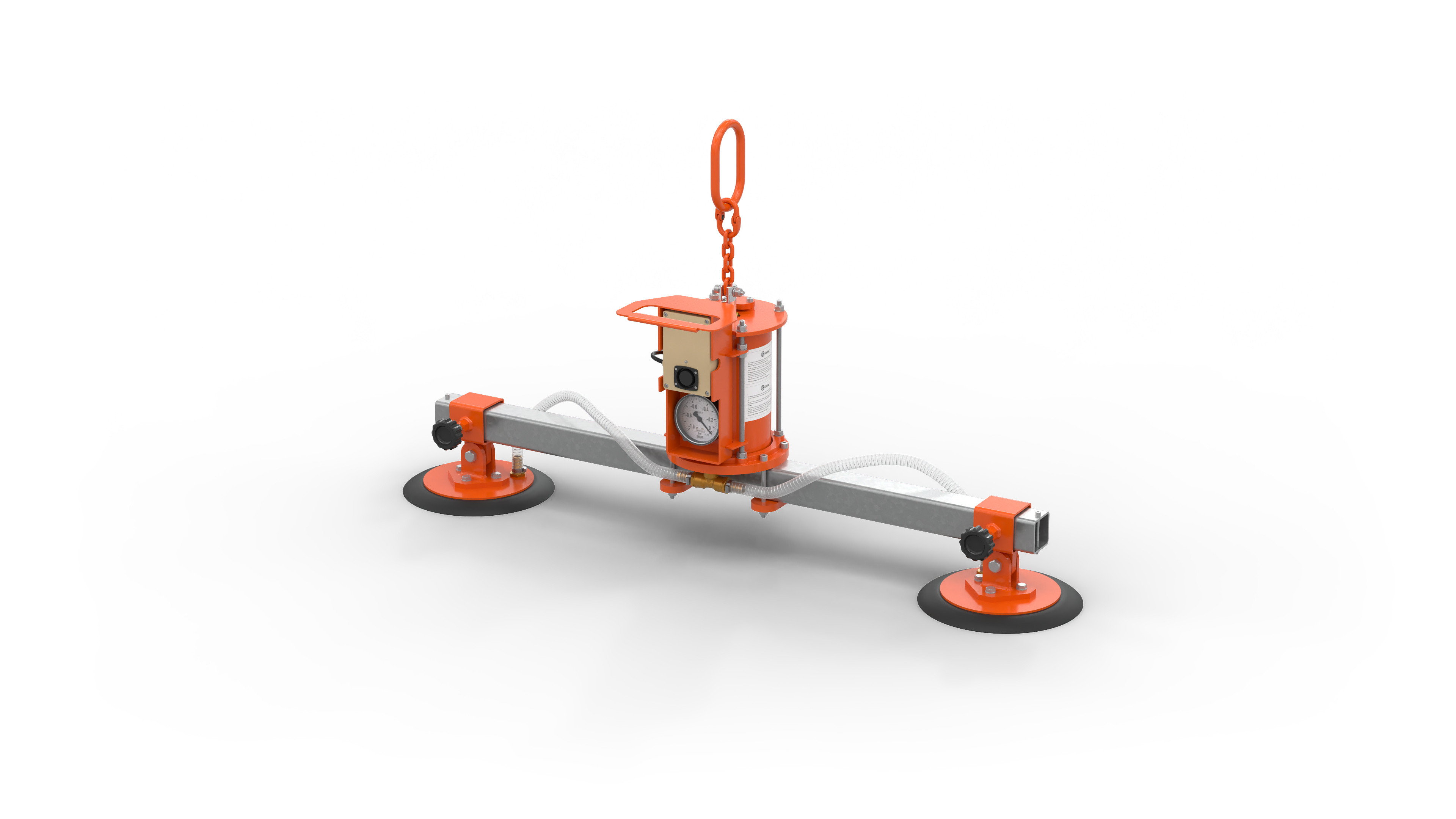

VMS 150-2
| Parameter | Value |
|---|---|
| Type | VMS 150-2 VMS 150-2 |
| WLL – Working load limit | 150 kg 150 kg |
| Maximum dimension (reference sheet) | 2500 × 1250 2500 × 1250 |
| Minimum dimension | 500 × 250 500 × 250 |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 22 kg 22 kg |
| Number of suction cups / size | 2 / Ø 230 mm 2 / Ø 230 mm |
| Minimum load capacity | 5 kg 5 kg |
| Dimensions | Amax 725 mm |
| Dimensions | B1 / B2 60 / 110 mm |
| Dimensions | Ø C 230 mm |
| Dimensions | D 1000 mm |
| Can be equipped with shut-off valves | No No |
