Code: vms-1200-3

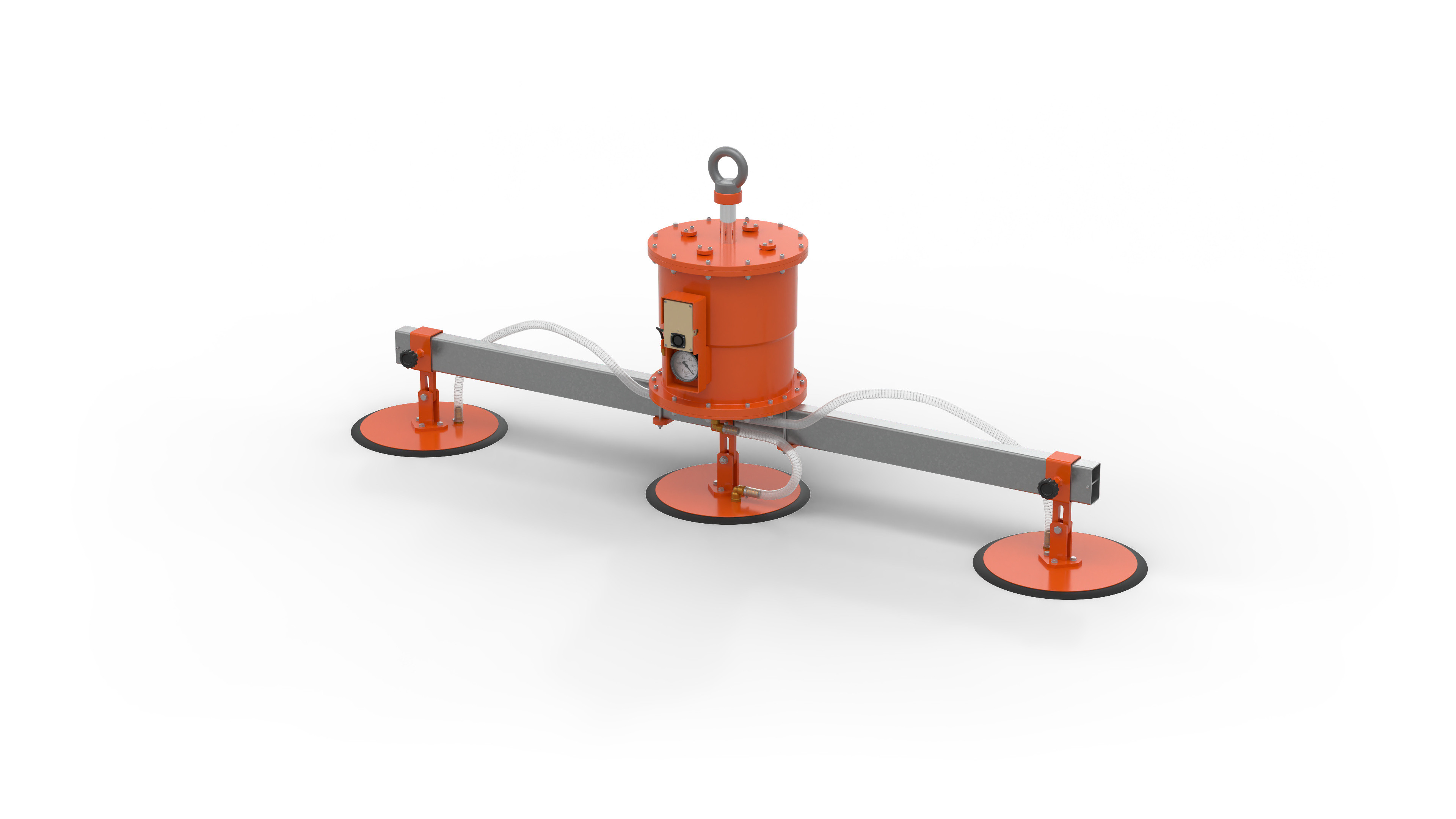

VMS 1200-3
| Parameter | Value |
|---|---|
| Type | VMS 1200-3 VMS 1200-3 |
| WLL – Working load limit | 1200 kg 1200 kg |
| Maximum dimension (reference sheet) | 3000 × 1500 mm 3000 × 1500 mm |
| Minimum dimension | Ø 450 mm Ø 450 mm |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 135 kg 135 kg |
| Number of suction cups / size | 3 / Ø 400 mm 3 / Ø 400 mm |
| Minimum load capacity | 10 kg 10 kg |
| Dimensions | Amax 1010 mm |
| Dimensions | Ø B 60 mm |
| Dimensions | Ø C 400 mm |
| Dimensions | D 1910 or 2200 mm |
| Can be equipped with shut-off valves | Yes Yes |
