Code: vms-1200-1

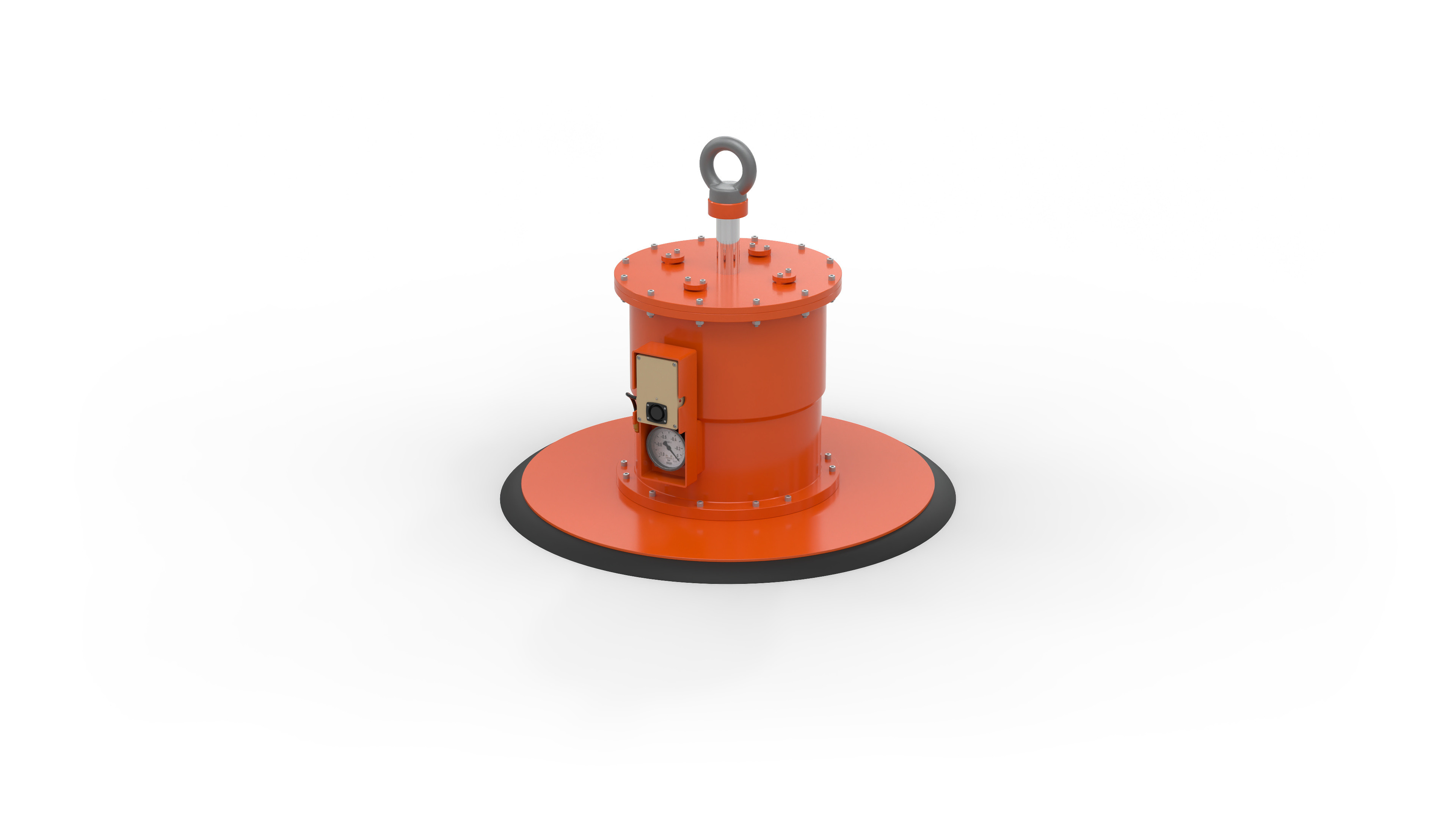

VMS 1200-1
| Parameter | Value |
|---|---|
| Type | VMS 1200-1 VMS 1200-1 |
| WLL – Working load limit | 1200 kg 1200 kg |
| Maximum dimension (reference sheet) | 2000 × 2000 mm 2000 × 2000 mm |
| Minimum dimension | Ø 800 mm Ø 800 mm |
| Minimum thickness (for steel sheet) | 2 mm 2 mm |
| Weight | 130 kg 130 kg |
| Number of suction cups / size | 1 / Ø 770 mm 1 / Ø 770 mm |
| Minimum load capacity | 10 kg 10 kg |
| Dimensions | A max 754 mm |
| Dimensions | Ø B 60 mm |
| Dimensions | Ø C 770 mm |
| Can be equipped with shut-off valves | No No |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
