Code: vms-100-1

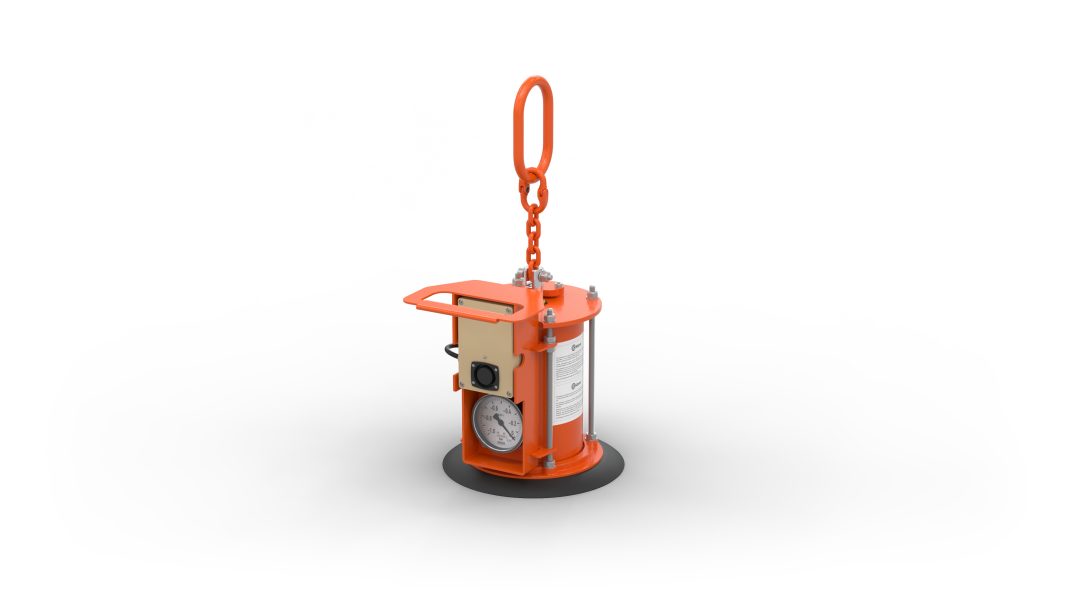

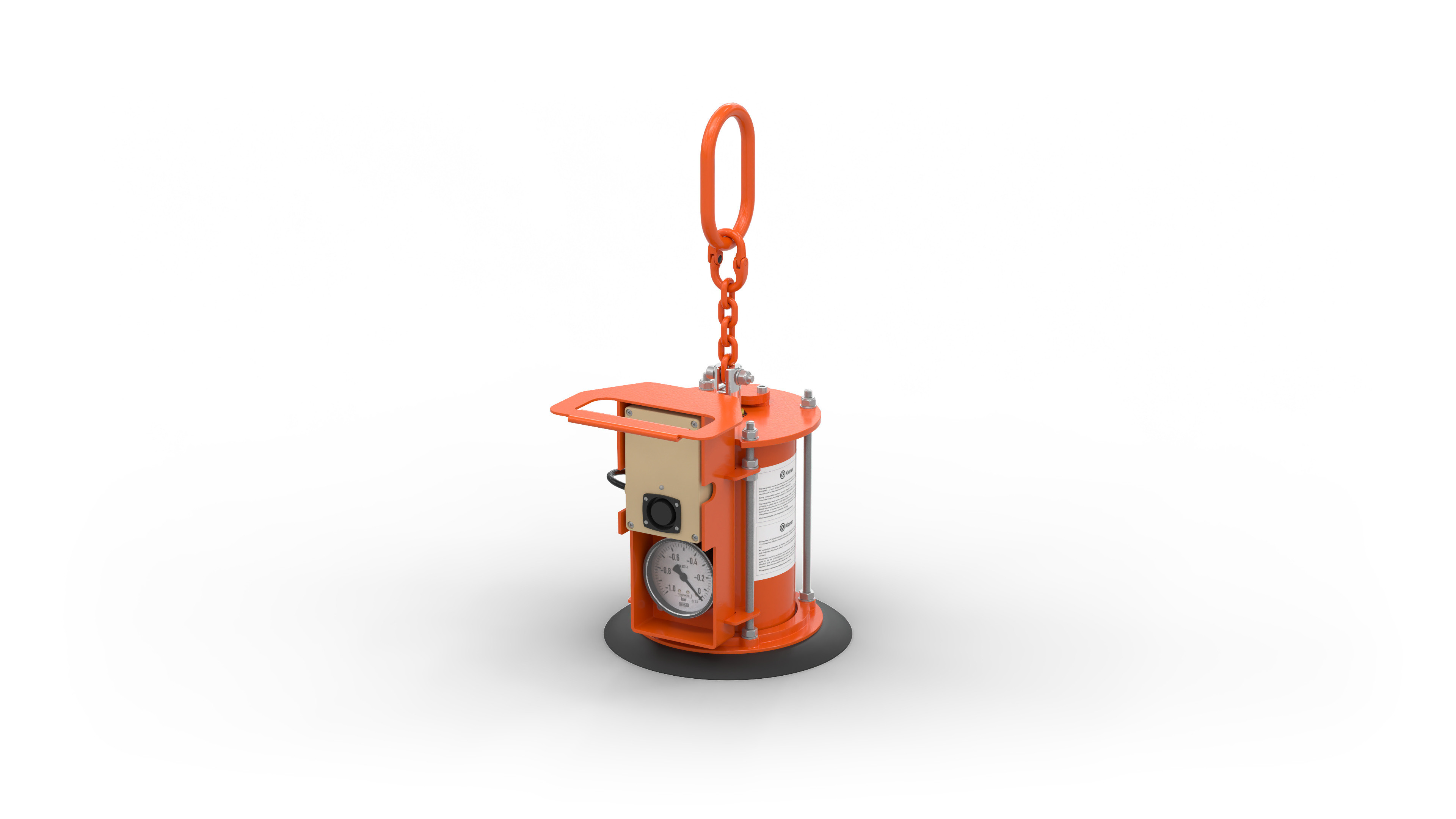

VMS 100-1
| Parameter | Value |
|---|---|
| Type | VMS 100-1 VMS 100-1 |
| WLL – Working load limit | 100 kg 100 kg |
| Maximum dimension (reference sheet) | 1000 × 1000 mm 1000 × 1000 mm |
| Minimum dimension | Ø 250 mm Ø 250 mm |
| Minimum thickness (for steel sheet) | 1 mm 1 mm |
| Weight | 17 kg 17 kg |
| Number of suction cups / size | 1 / Ø 230 mm 1 / Ø 230 mm |
| Minimum load capacity | 5 kg |
| Dimensions | Amax 595 mm |
| Dimensions | B1/B2 60/110 mm |
| Dimensions | Ø C 230 mm |
| Can be equipped with shut-off valves | No No |
Did you not choose a suitable type of manipulator?
Send us your parameters – weight, dimensions, and material of the loads you intend to handle. We will design, offer, and manufacture a KLANER manipulator according to your requirements.
